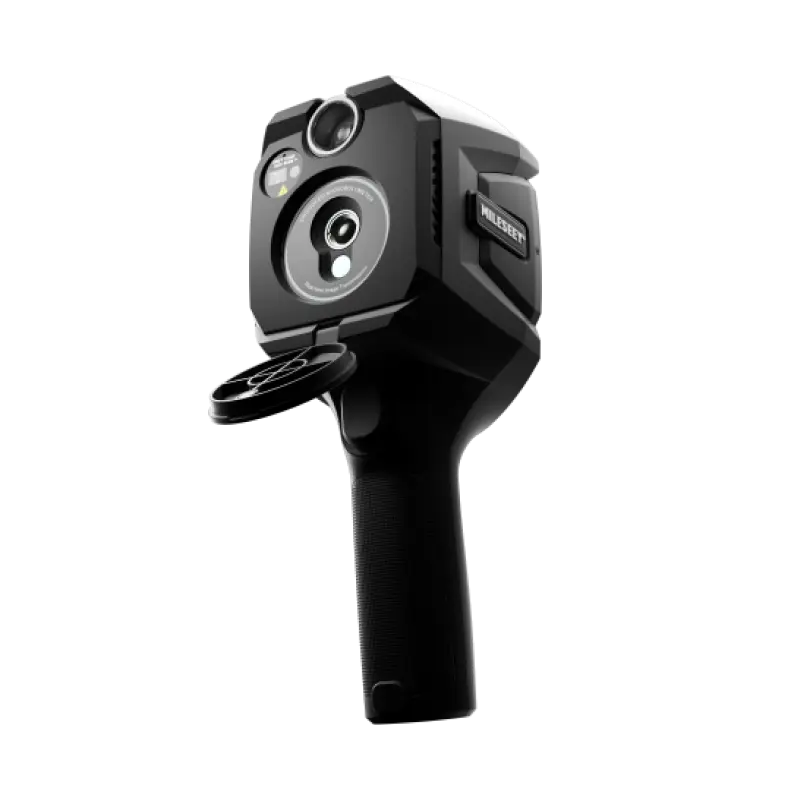

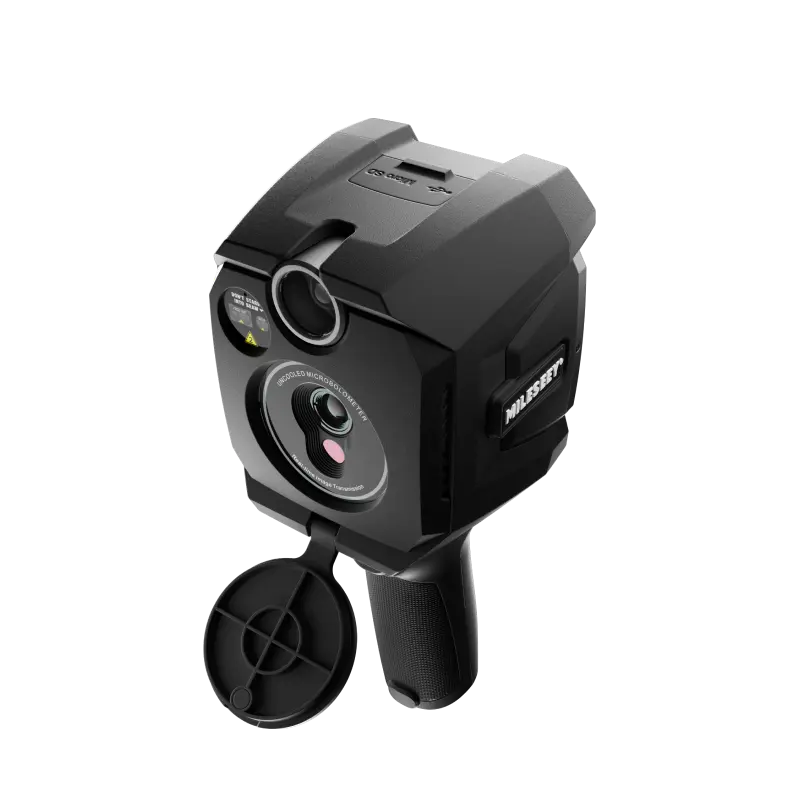

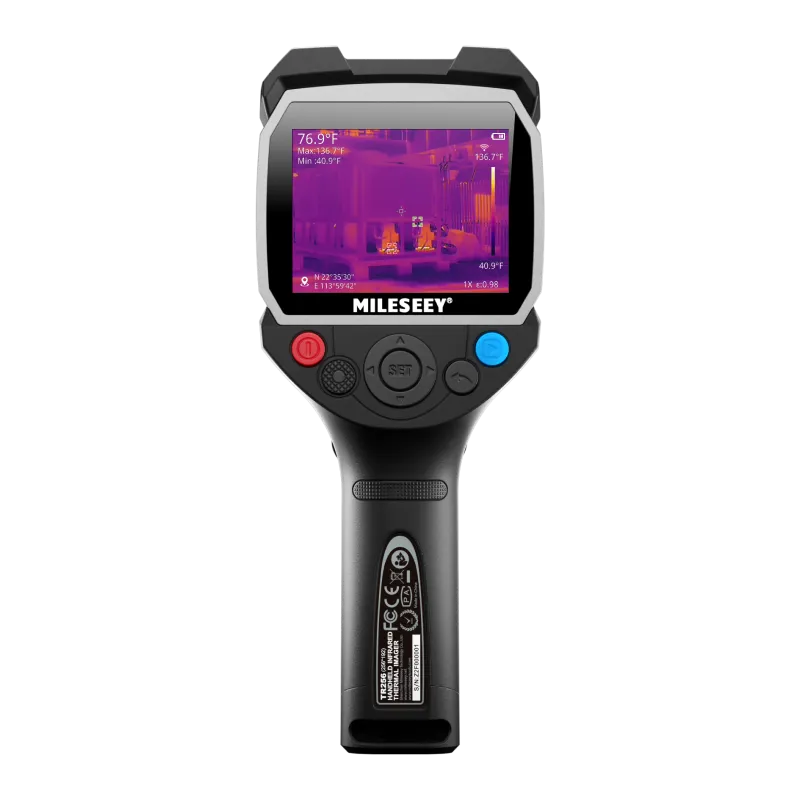

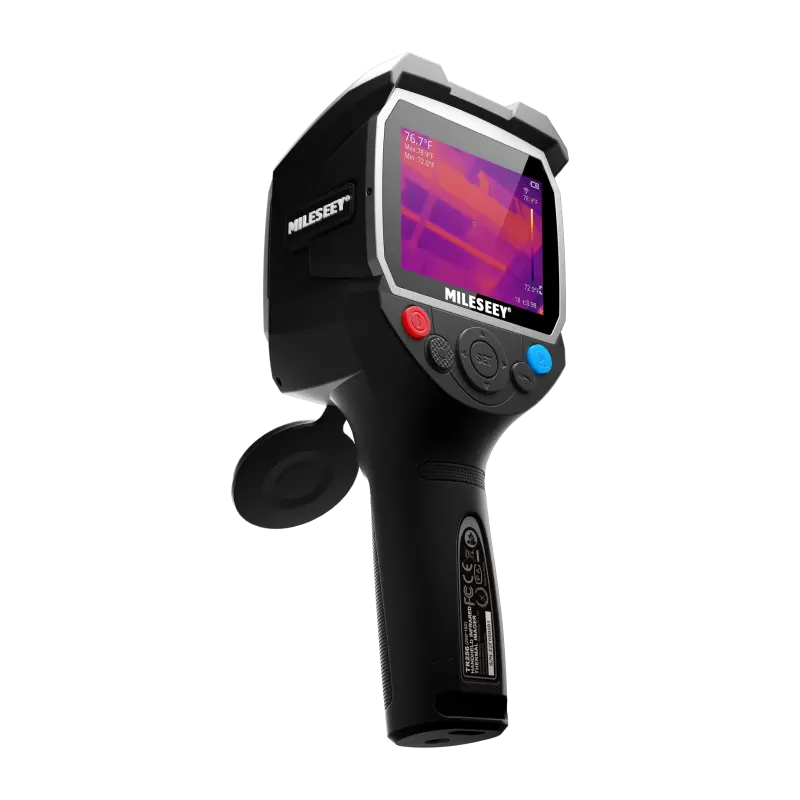

TR384C Thermal Imaging Camera with Laser Measure & GPS

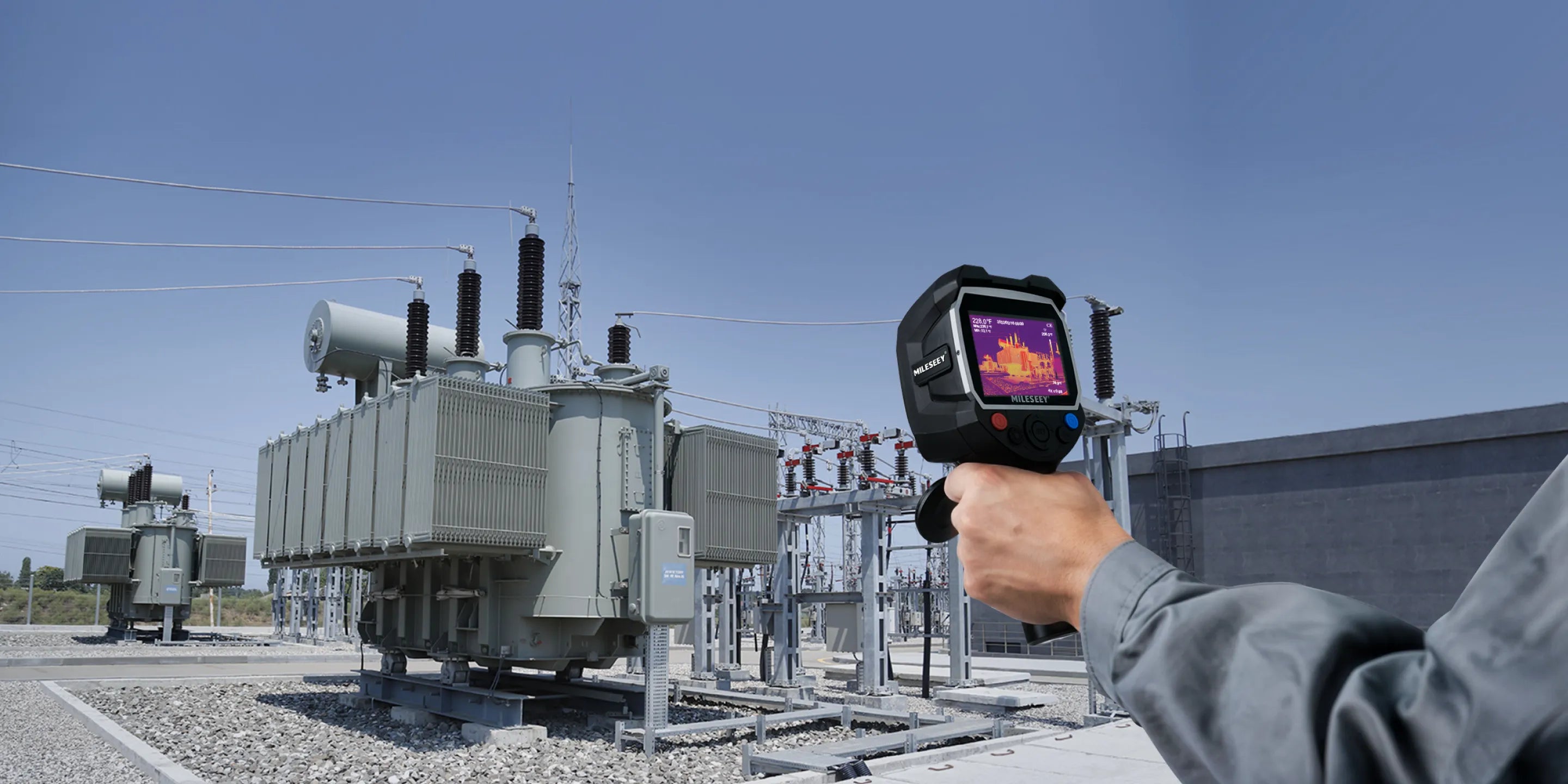

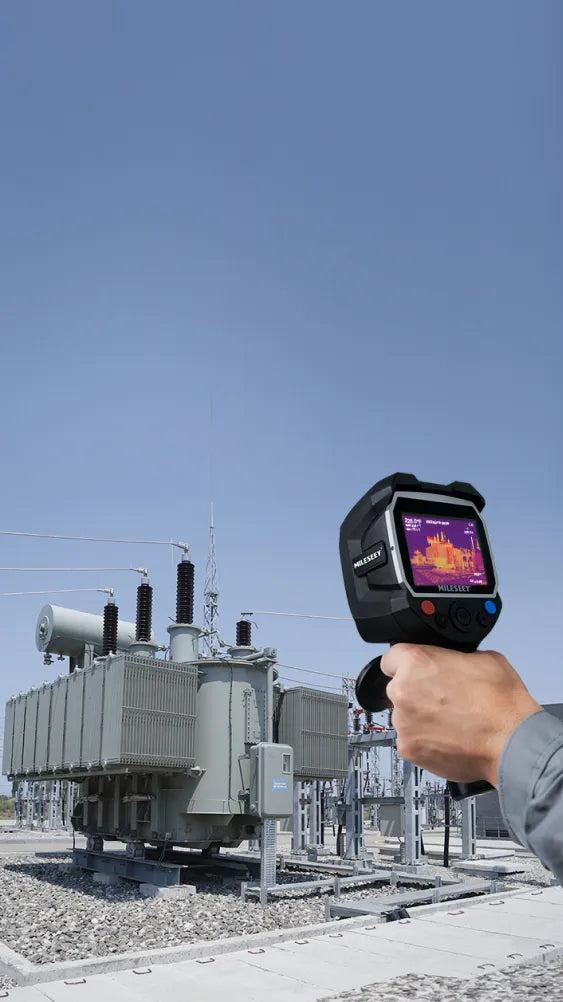

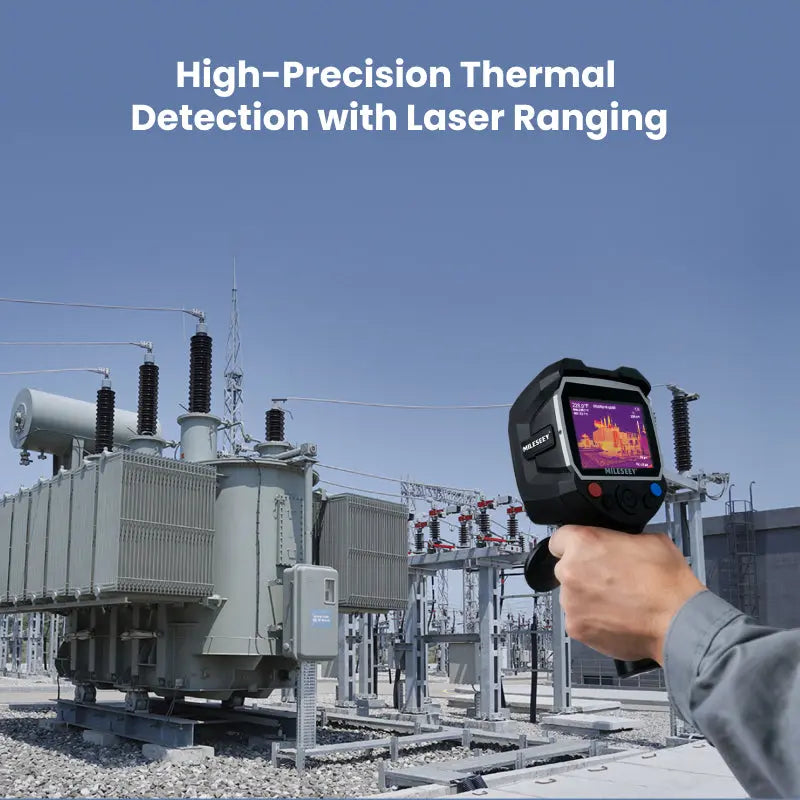

TR384C: High-Precision Thermal Imaging with Laser Measurement and GPS
Empowering Professionals for Accurate Inspections and Diagnostics.

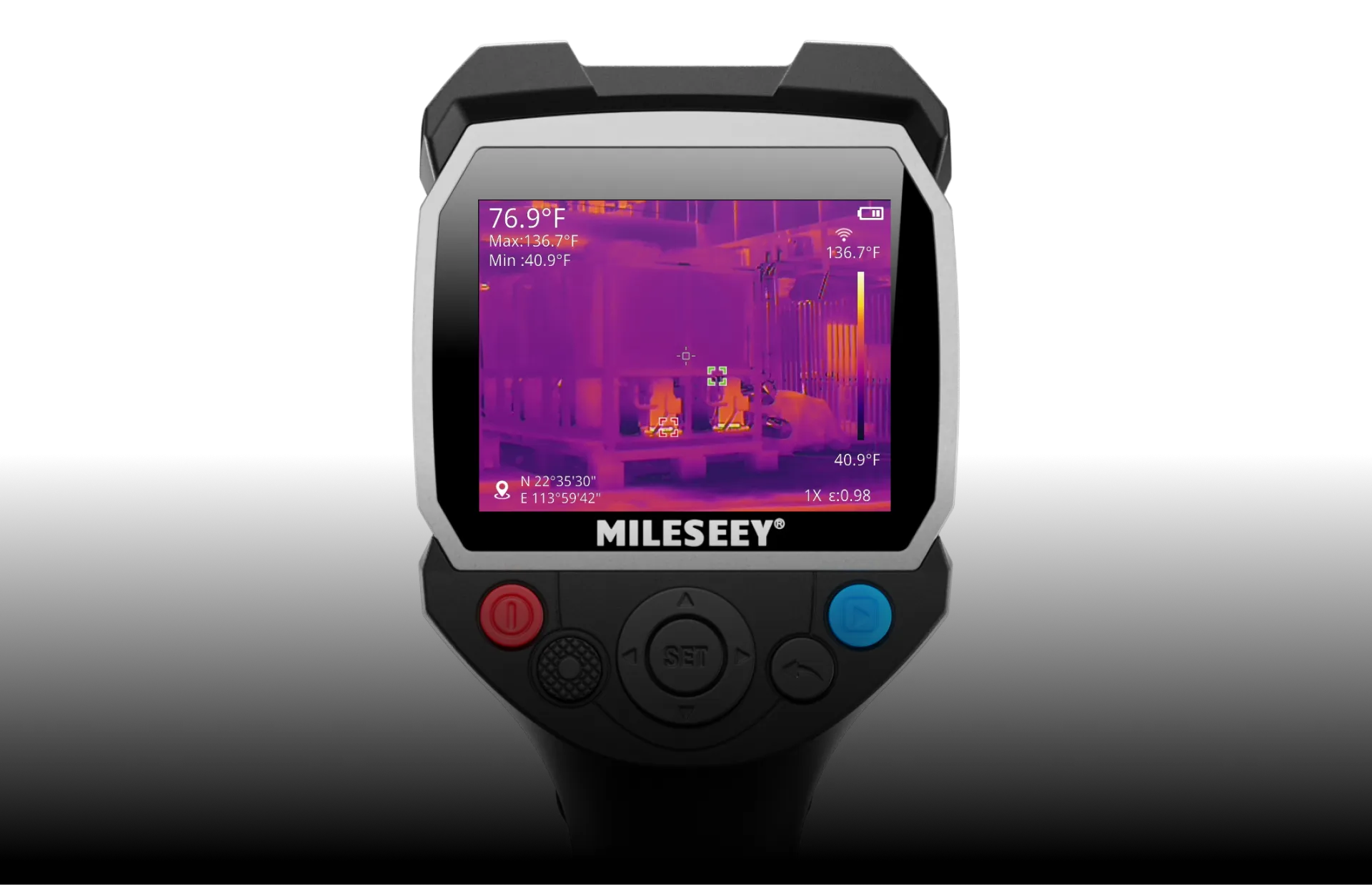

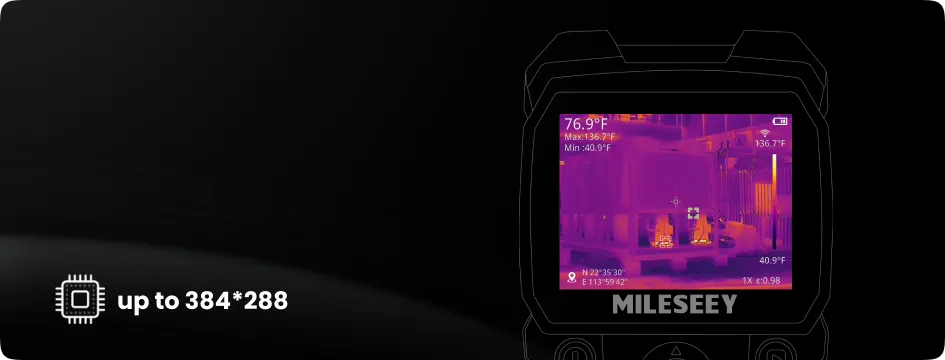

Take Thermal Imaging to the Next Level

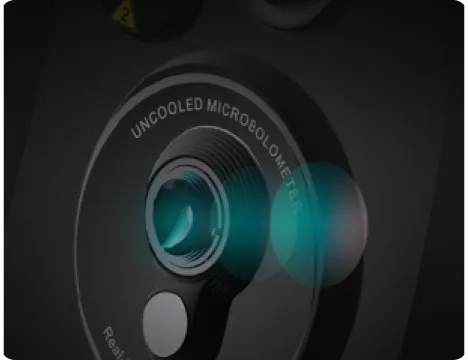

Upgraded camera lens with advanced image enhancement algorithm ensures pristine image quality with vivid details, allowing users to find the anomaly with just a glance.

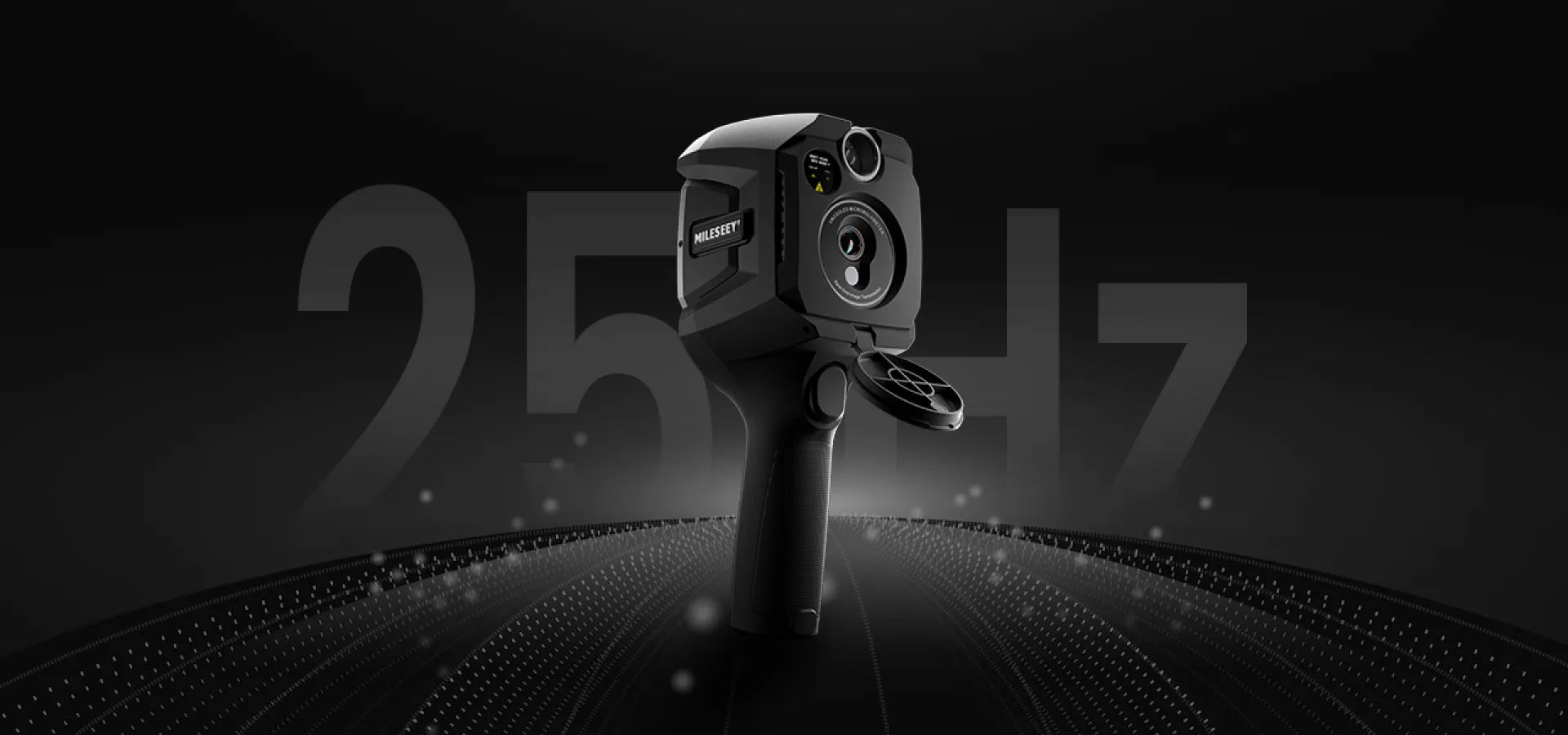

384*288
up to
25Hz
Frame Rate
≤40mk

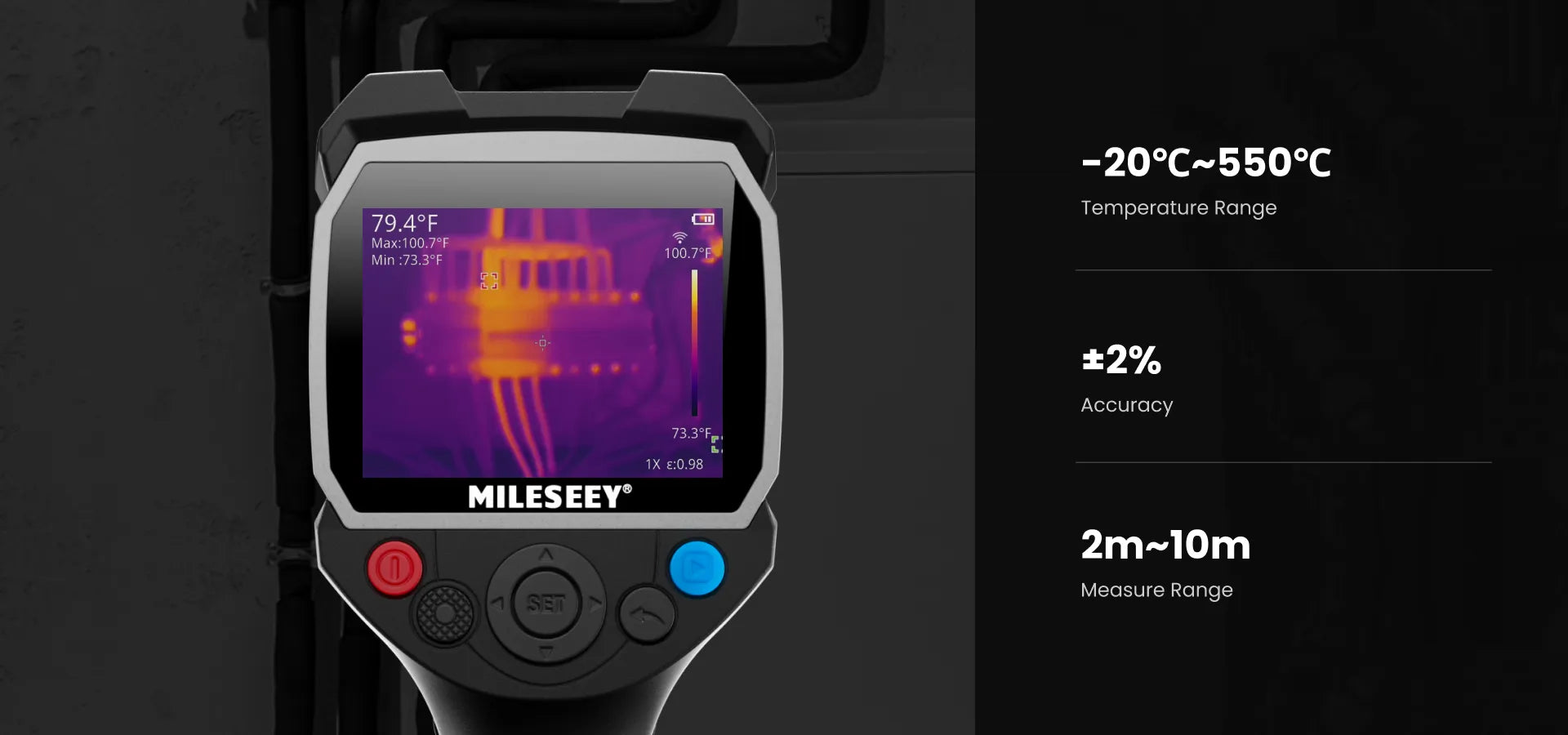

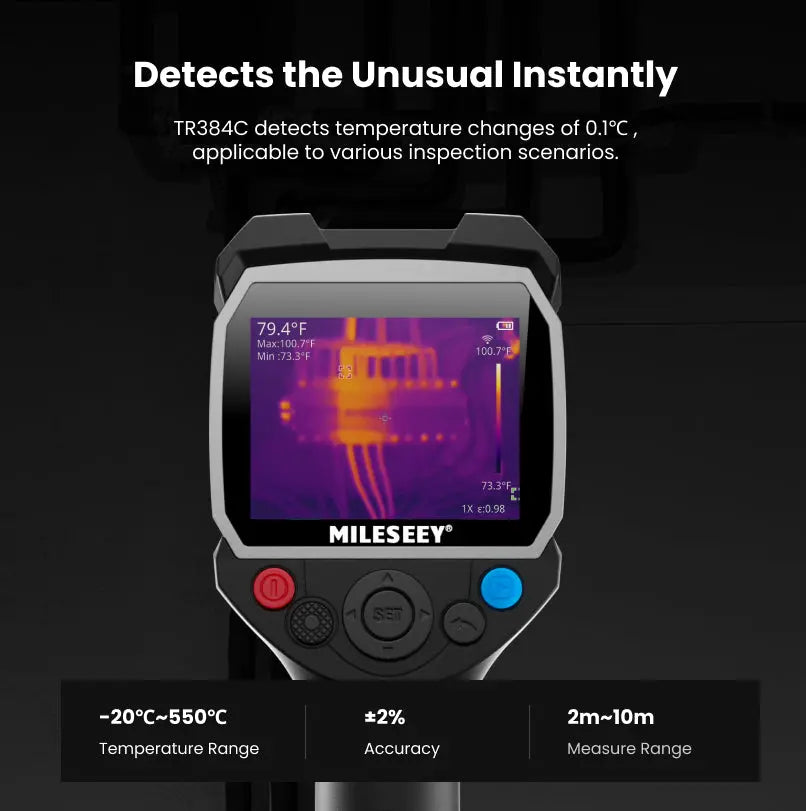

NETDDetects the Unusual Instantly
TR384C detects temperature changes of 0.1℃ with accuracy up to ±2% and wide temperature range between -20℃ to 550℃, applicable to various inspection scenarios.
Identify Anomalies in a Second
Hot & Cold Spot Auto Track with high/low temperature alarm helps users to quickly pinpoint where the problem is in the scanning area and fix it in time.
Enhanced Imaging Capabilities for Precision Diagnostics

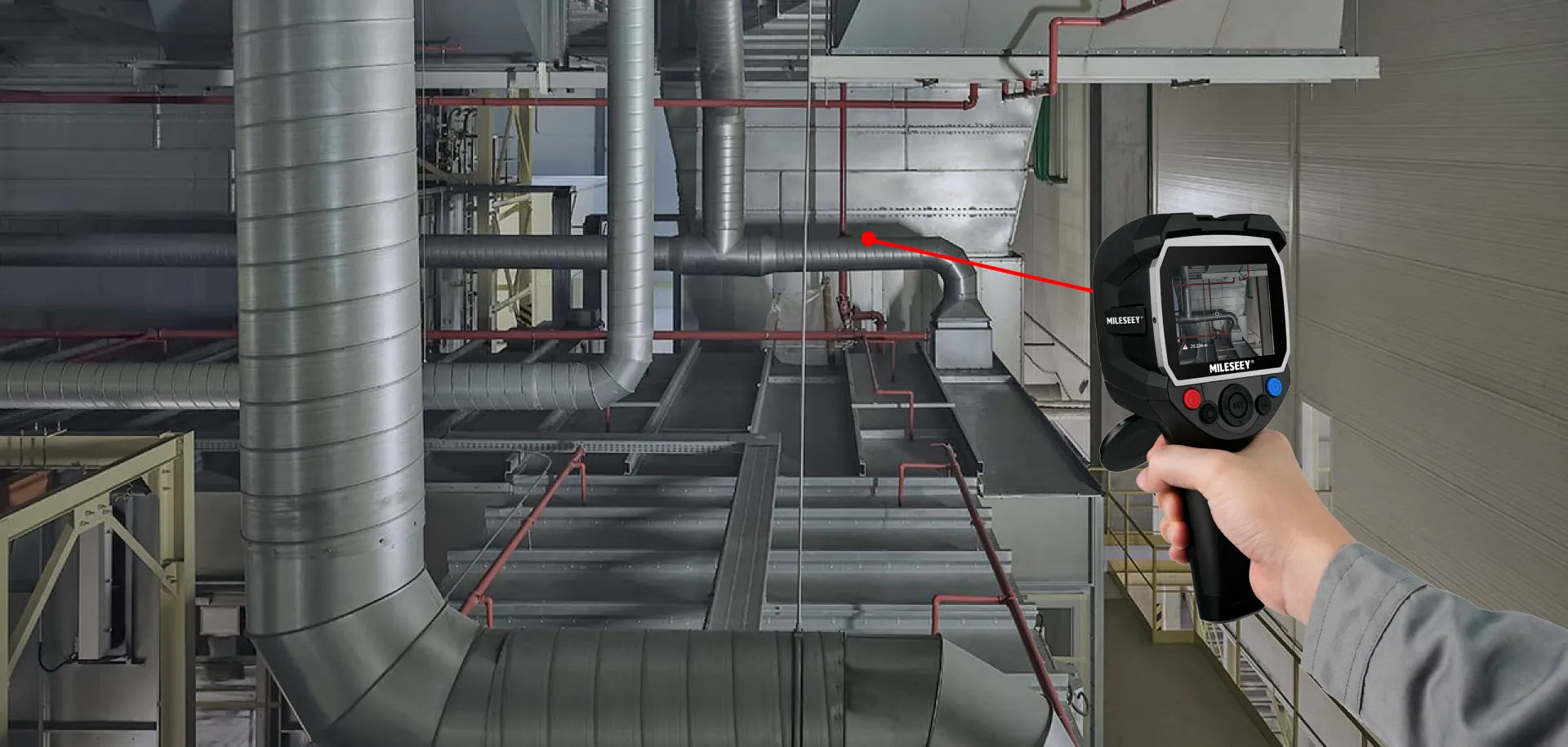

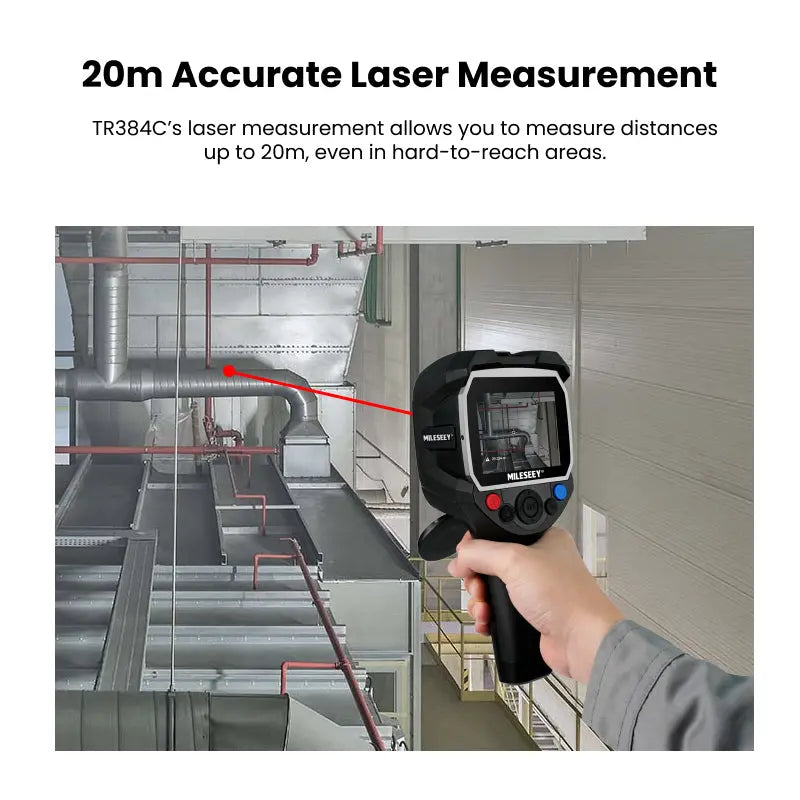

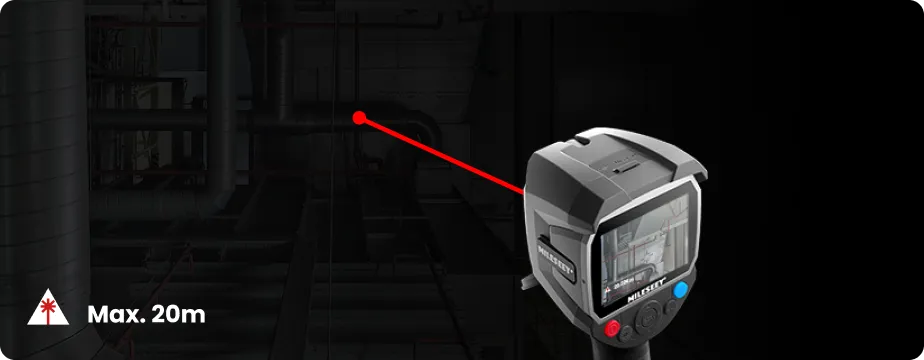

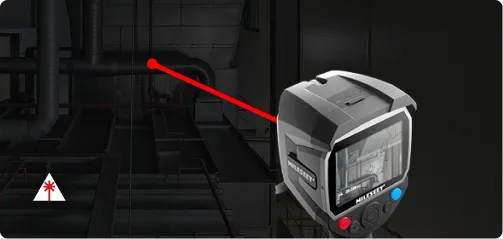

Accurate Laser Measurement up to 20m
Stay safe and efficient. TR384C’s laser measurement feature allows you to measure distances up to 20m with pinpoint accuracy, even in hard-to-reach areas.

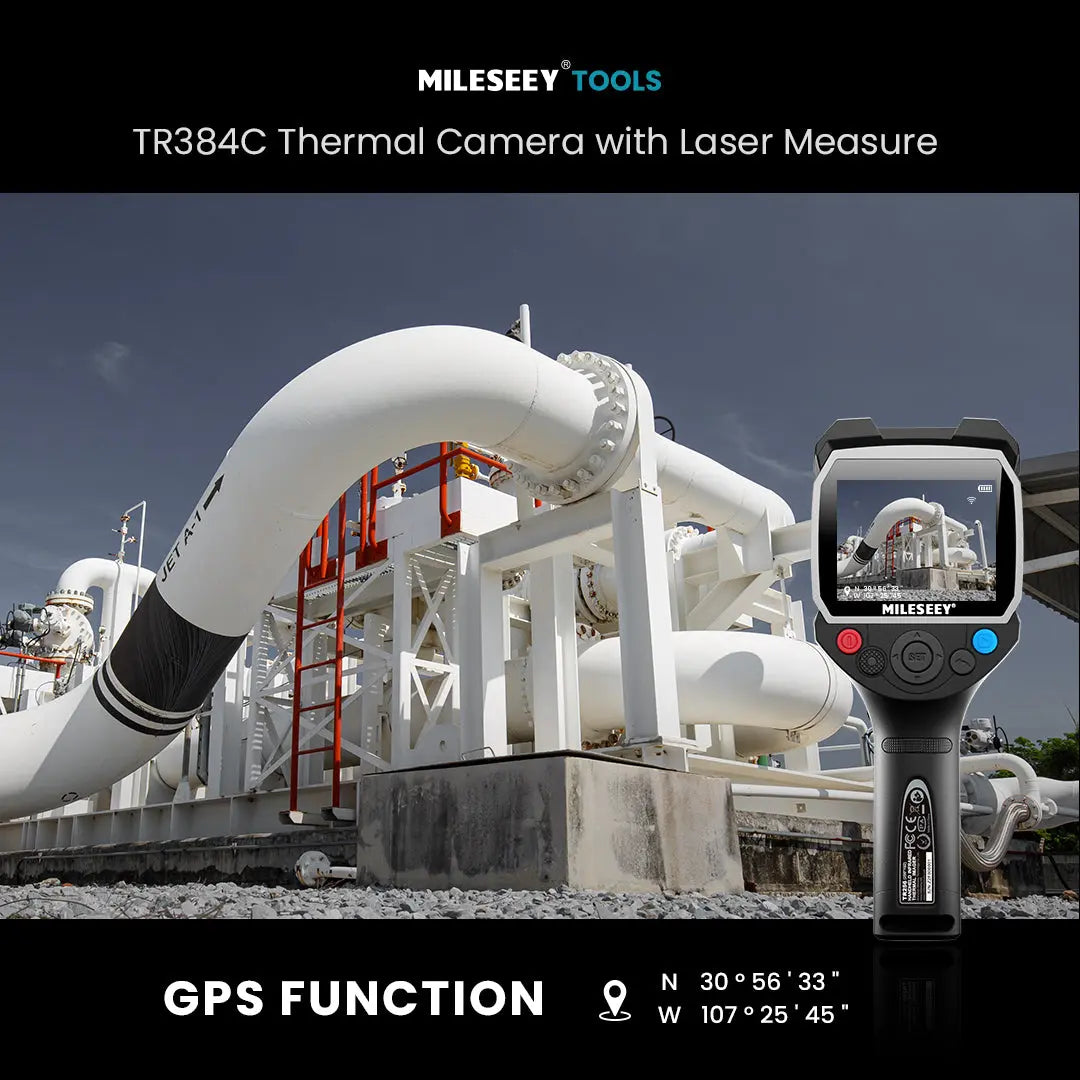

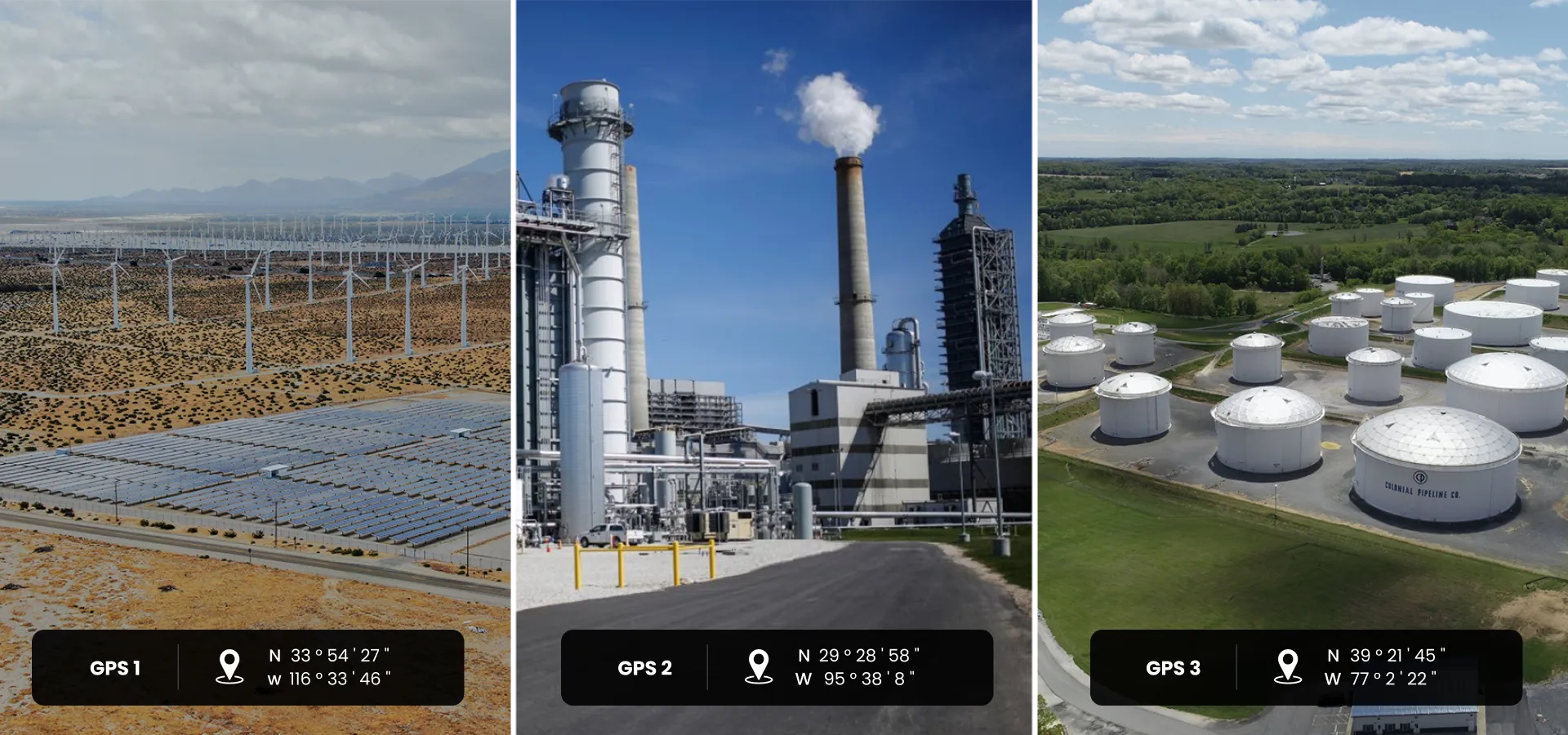

GPS Tracking for Accurate Positioning
Record precise coordinates of your inspection points with built-in GPS. Easily locate faults for revisits and create professional inspection reports.

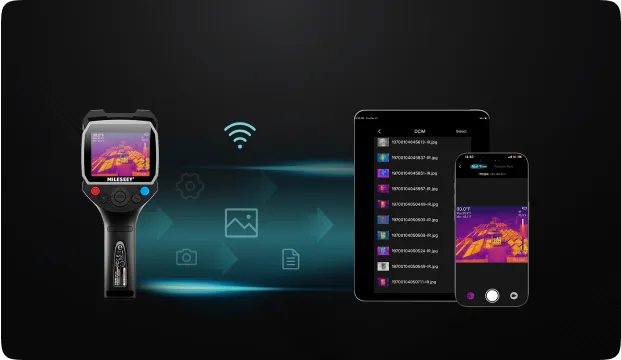

Unlock More Possibilities with the App
Connect TR384C to the "Thermal TP Series" app to view thermal imaging from your phone or tablet and manage data from there as well.

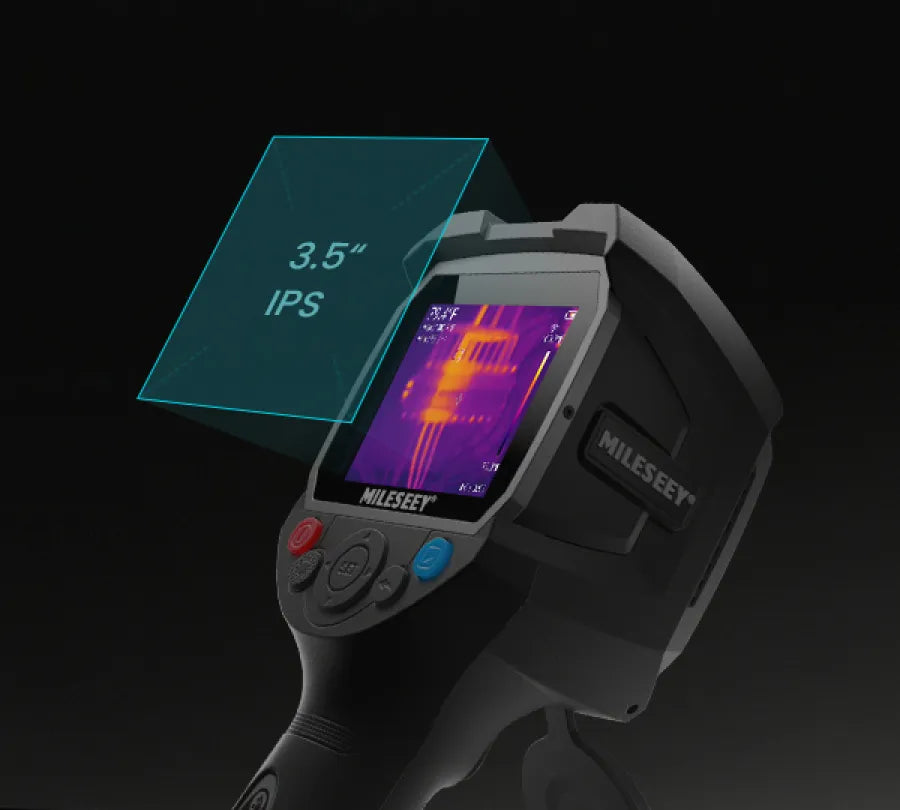

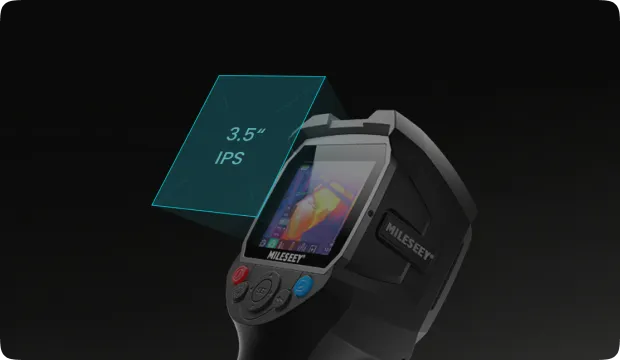

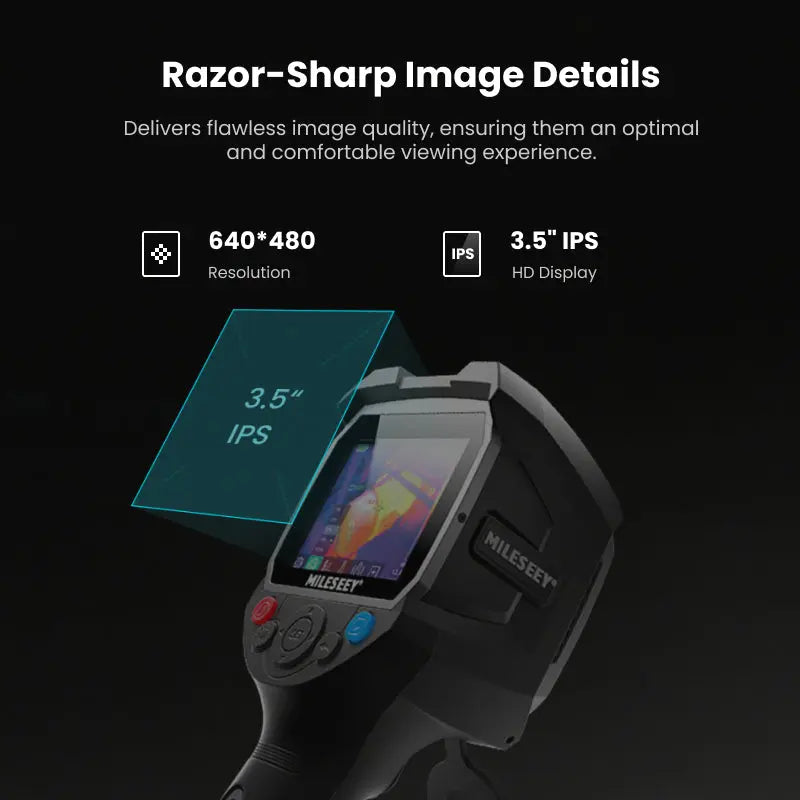

Enjoy Premium Visuals
An expansive 3.5" IPS HD display with resolution of up to 640*480 delivers flawless image quality, ensuring them an optimal and comfortable viewing experience.
640*480
Resolution
3.5" IPS
HD Display

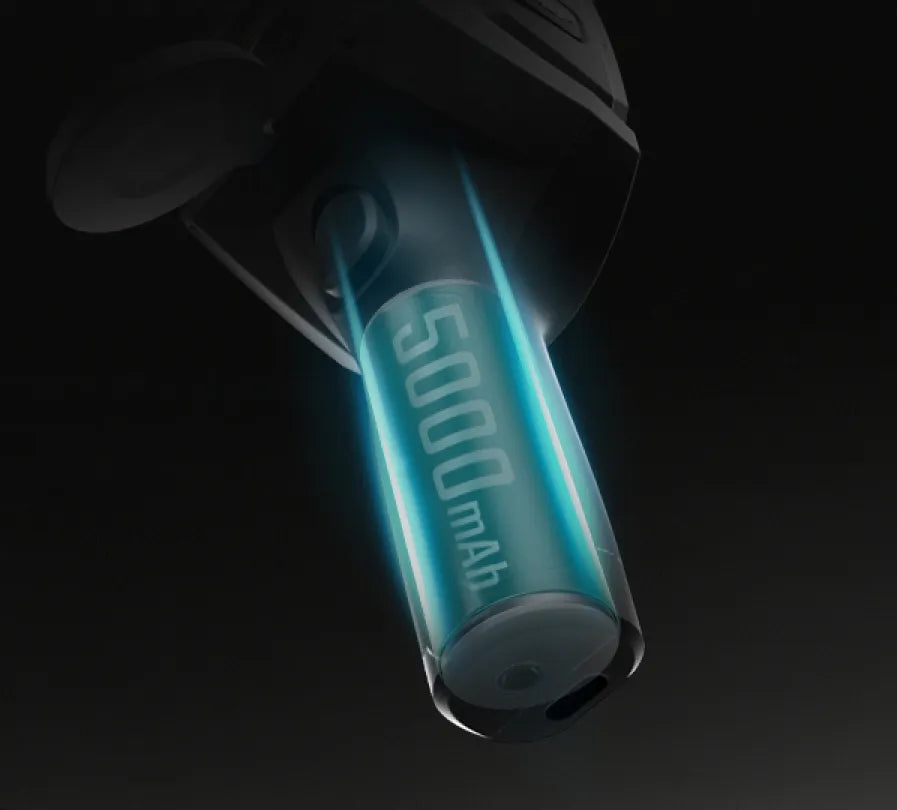

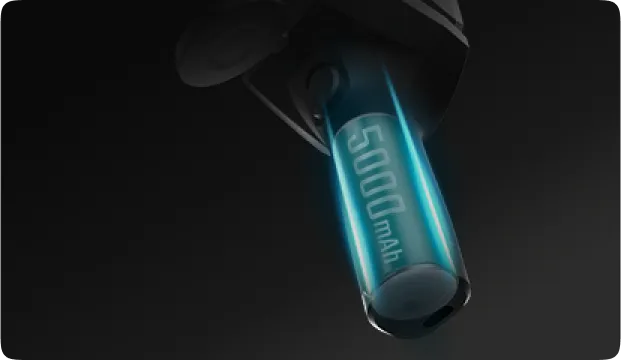

Stay Powered-up for All-Day Work
Built-in 5,000mAh lithium battery with auto power-off boasts an ultra-long battery life of up to 10 hours, easily covering all your inspection work for the day.
Max. 10hr
Continuous UseAuto Power-off
(5min/10min/20min)4hr
Charge Time
With over 270 patents and continuous innovation, MILESEEY Tools has earned the trust of professionals and DIYers in more than 100 countries, serving over 10 million users.
TR384 Specs
Model Number
TR384C
Thermal Imaging Pixels
384 × 288 (110,592 pixels)
Spectral Range
8 μm to 14 μm
HFOV
28° × 21°
Pixel Size
12 μm
Output Frame Rate
25 Hz
Thermal Sensitivity
≤40 mK
Detection Temperature Range
-20°C to 550°C (-4°F to 1022°F)
Accuracy
±2°C or ±2%
Measurable Distance Range
2 m to 10 m (6.6 ft to 33 ft)
Laser Measured Distance
20 m (66 ft)

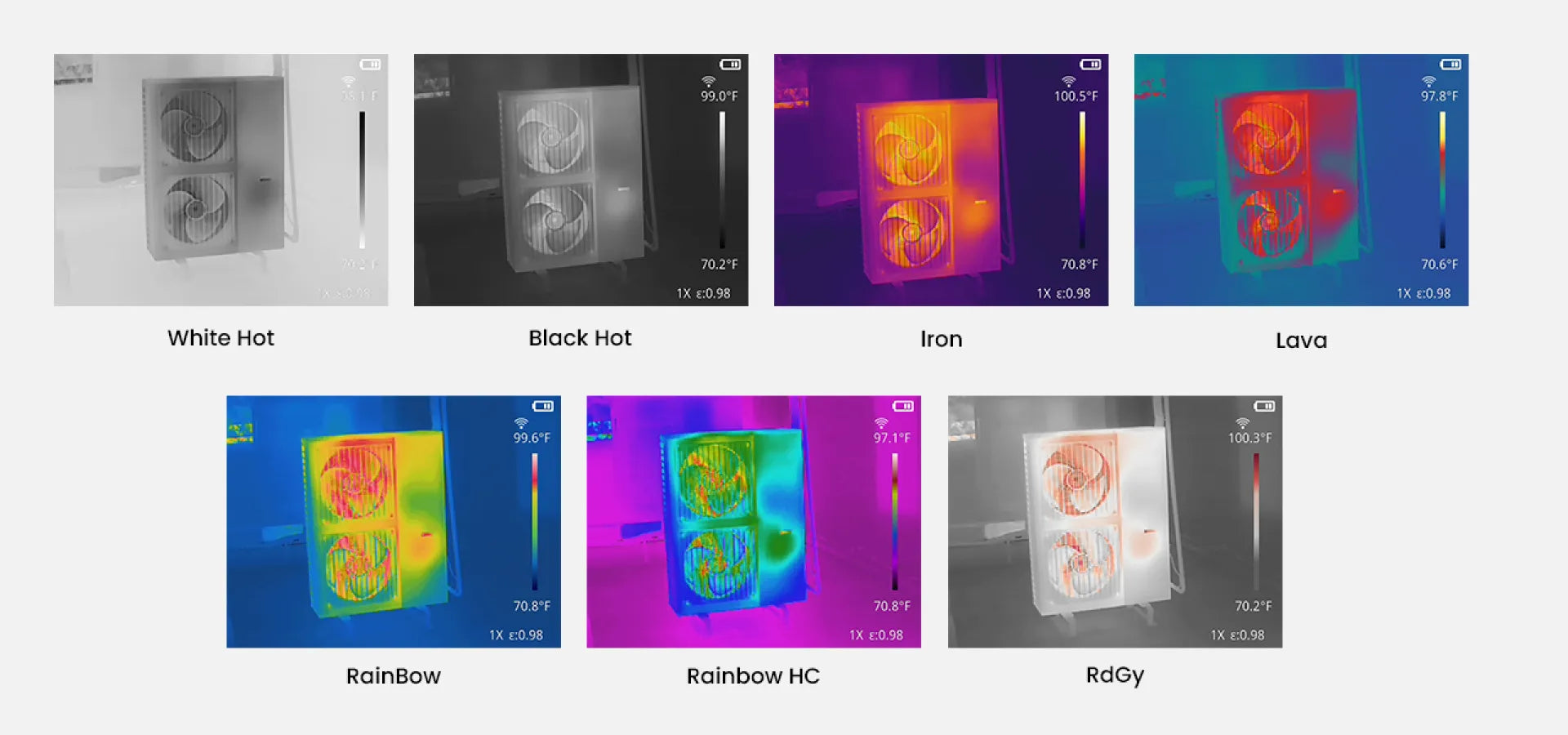

Color Palette
7
High/Low Temperature Alarm
✓
Laser Distance
✓
GPS
✓
Wi-Fi
✓
Display Size
3.5-inch
Display Resolution
640 × 480
Visible Light Resolution
2 megapixels
Interface
USB-C port
Power
5,000 mAh / 3.7 V

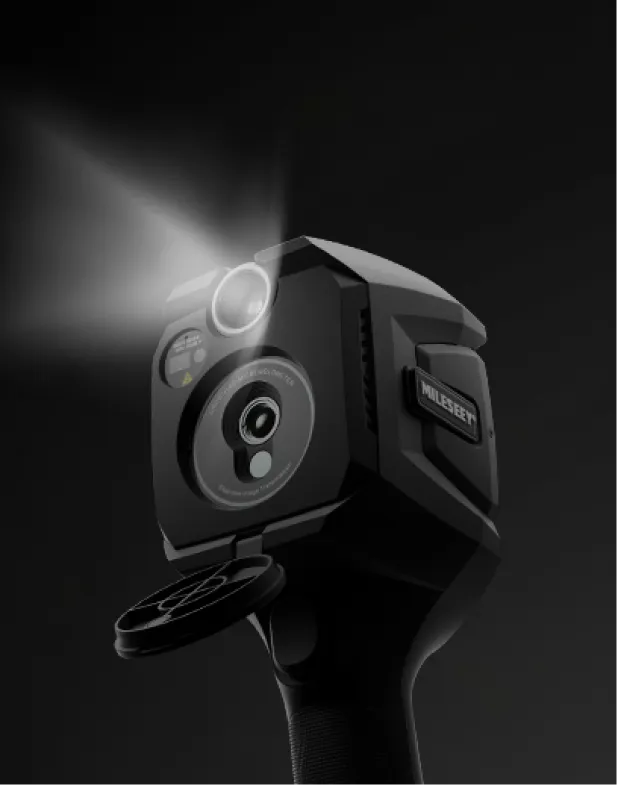

Light
White LED
Use Environment Temperature
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Dimensions
238 × 95 × 85.5 mm
Weight (including battery)
555 g
